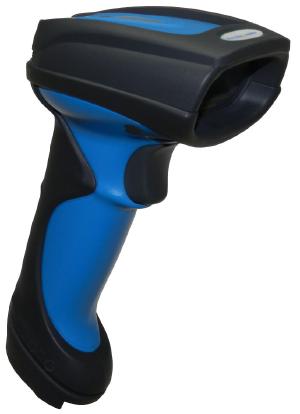

SD261Ex Bluetooth hand scanner 2D
Description:
The high quality and robust handheld barcode scanners from Sigmann DELTA with their newly developed features are ideal for industrial applications in hazardous areas. They impress with their high scanning frequency, that makes a rapid reading of barcodes possible. Using a large read distance and a wide scan line enables to read hard to reach lables easier. In noisy industrial environment gets the user by LED, beeper and vibration signal an intuitive good read feedback. Due to the impact-resistant housing the scanner survive even falls from a height of up to 2 meters, without damage. The exchange of data between hand-held scanner and the base charging station is made via a bluetooth connection. Base station and the scanner are certified for the use in hazardous areas, even charging is there without any problems possible. Required accessories:
- Corresponding supply module
- Corresponding base charging station
- Necessary data cable Scanner data: Scanner design: 1D linear imager 2D two-dimensional imager Light source: Visible red light (630 nm) Scanning frequency: 1D 500 Hz 2D 60Hz Reading distance: 1D 20 mm to 850 mm 2D 30 mm to 380 mm depending on type Ambient light immunity: 100,000 Ix Optical display: 2 LEDs (Operational status, read receipt) Acoustic indicator: Beeper / buzzer (switchable) vibration alert
Interfaces:
Based charging station: RS-232 / RS-422 or USB Bluetooth function 1D BluetoothTM V2.1 EDR, Class 2 2D BluetoothTM V4.0 EDR, Class 1 Up to 30m radius function Explosion protection certification II 2G Ex ib IIC T4 II 2G Ex ib IIB T4 Gb II 2D Ex ib IIIC T135 ° C II 2D Ex ib IIIC T135 ° C Db Certificate IBExU 12 ATEX 1162 IECEx IBE 15.0017
