Power supply module SD164ex SD164BTex

Product description

The power supply module provides power and data transmission.

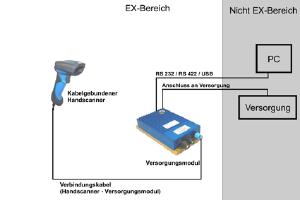

It is the intrinsically safe power supply between the base cradle the hand scanner SD164BTex and / or directly with the hand scanner SD164ex. The power supply is directly possible in hazardous areas and are available in different variants. The power supply module is available in 2 versions with different input voltages. In hazardous area Zone 1 and 21, the power supply module is connected via a plug to the hand-held scanner SD164ex or the base cradle of Bluetooth handheld scanner SD164BTex.

Highlights:

Installation in hazardous area Zone 1 and 21 possible Various input voltages are available Various interfaces are available Reliable intrinsically safe supply of hand-held scanner

Features

Construction Aluminum housing Degree of protection IP 64 Storage temperature -40 ° C to +60 ° C Ambient temperature -20 ° C to +60 ° C Dimensions (width x depth x height) 140 mm x 56 mm x 250 mm Weight 3.1 kg without connecting cable AC input voltage 90 V AC to 264 V, 50/60 Hz; DC 10.8 V to 13.2 V; DC 18 V to 30 V outputs SD.211.xx01.xx UO = 5.5 V DC IO = 440 mA CO = 55 uF SD.211.xx11.xx UO = 4.9 V DC IO = 440 mA CO = 113 uF PO = 1.20 W

Available interfaces RS232 / RS422 or USB ATEX marking II 2G Ex eb qb [ib Gb] IIC T4 II 2D Ex tb IIIC T135 ° C and II 2G Ex e q [ib] IIC T4 Gb II 2D Ex t IIIC T135 ° C Db Certificate IBExU 09 ATEX 1051
